HVAC And HEPA Filter
The main purposes of a Heating, Ventilation, and Air-Conditioning (HVAC) system are to help maintain good indoor air quality through adequate ventilation with filtration and provide thermal comfort. Proper air filtration and care for your HVAC system will result in better conditions and air quality for occupants of the building as well as increase the efficiency and longevity of the HVAC system.

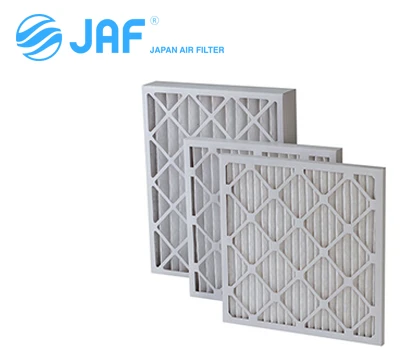

- 100% Synthetic Media
- High Filtration Efficiency
- Available in 1, 2, and 4 inch depths
- Radial Wedge Pleat Configuration
- Heavy Duty Moisture Resident Frame
- Available in MERV 6, 8, 11, and 13
For more details please contact +974 31104553 , info@maven-trading.com
Our Filters
- Pre Filters
- Bag Filters
- Rigid Bag Filters
- Hepa / Ulpa Filters
- JS – FB MAT
- JS MAT EC/SD/SU
- DEAKLEEN EC/SD/SU/SP/MG
- JS MAT GPM 30/GPM 60
- DEAMAT GPM
- Grease Filter
- DEAMAT S/P
- DEAMAT HT
- DEAMAT G50/G60/G85/G90
- DEANET

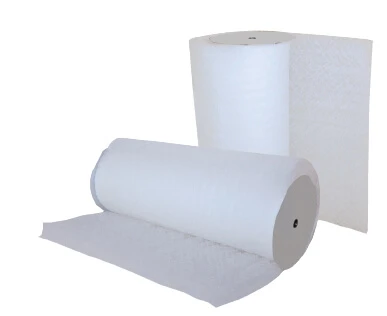

JS – FB MAT
- Available in Class G3
- Fibre Glass Media
- 2.5m/s
- DHC 475g/m2
- White, impregnated with gel scrim at clean air side.

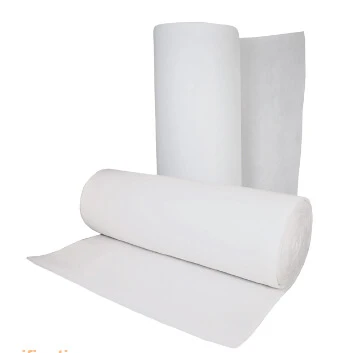

JS MAT EC/SD/SU
- Available in Class G2,G3,G4,M5
- Standard Length 20m
- Synthetic Fibre Media
- Excellent in Heat Resistance and Water resistance.
- Inflammable.

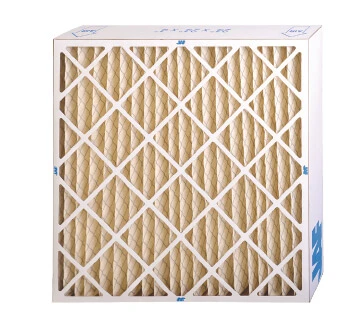

DEAKLEEN EC/SD/SU/SP/MG
- Available in Class G4,M5
- Beverage board Galvanized Steel
- Standard Depth 22mm,44mm and 95mm
- Non Woven Cotton Synthetic Blend
- Intercept is Available
- UL Certified

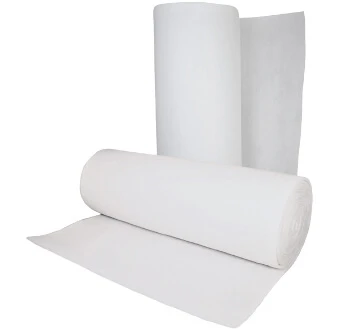

JS MAT GPM 30/GPM 60
- Available in Class M5
- Standard Length 2x20m
- Standard Thickness 18mm and 22mm
- 100% Polyester Free
- Come with Scrim

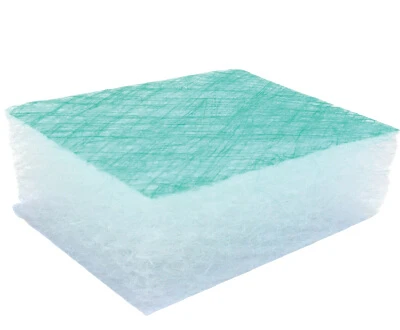

DEAMAT GPM
- Available in Class G4
- Standard depth 50mm
- Fibre Glass Media
- High Capacity for overall size of 50mm thickness for Paint Mist
- Progressive fibre glass for paint mist

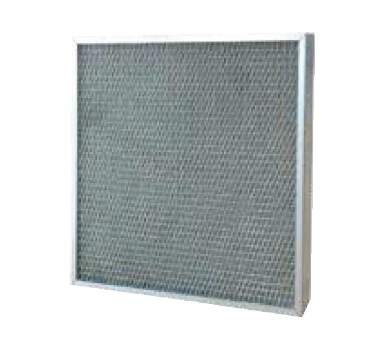

Grease Filter
- Aluminum
- Multiple layers of corrugated and fine mesh expanded metal sheets
- Standard Depth 46mm
- Washable and Suitable for Air and Grease application.

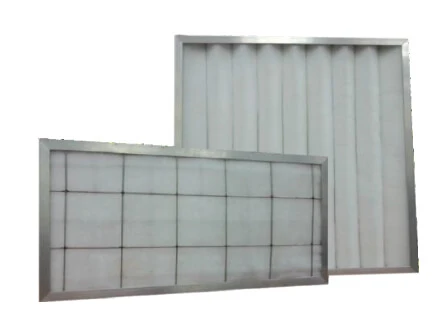

DEAMAT S/P
- Available in G2,G3,G4 Class
- Standard synthetic pre-filter come with Rod Retainer
- Customize size is possible
- Easy to install and long service life
- Reusable Frame
- No Glue/Adhesive

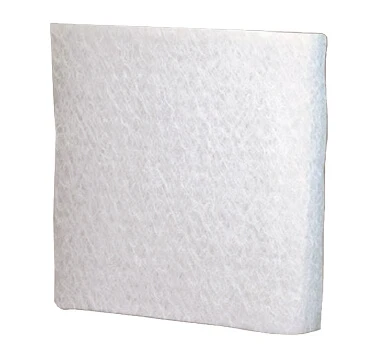

DEAMAT HT
- Fiber glass
- Rigid aluminium mesh frame
- Up to 3000C
- High air flow rate
- Low initial pressure drop
- Heavy dust holding capacity
- Longer service life
- Pre-filter for automobile and industrial coating lines at hot air ovens

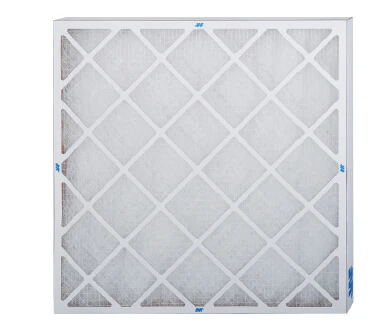

DEAMAT G50/G60/G85/G90
- Available in G1,G2,G3,G4 Class
- Progressive density holding fiber glass pad
- Categorized by four type of arrestance efficiency
- Customize size is possible
- Available in water resistance beverage board

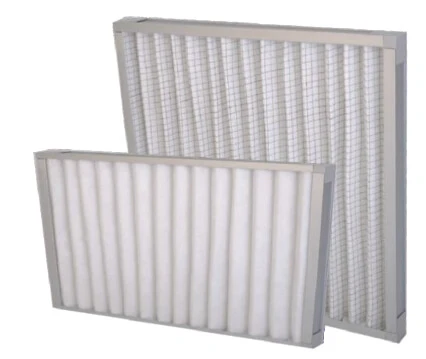

DEANET
- Standard synthetic pre-filter in the forms of pad
- Customize size is possible
- High dust holding capacity and easy to install
- Have a sturdy, long lasting welded wire mesh support grid
- MIRADEEP BORSA FG
- MIRADEEP BORSA G
- MIRADEEP BORSA
- MIRAPACK R

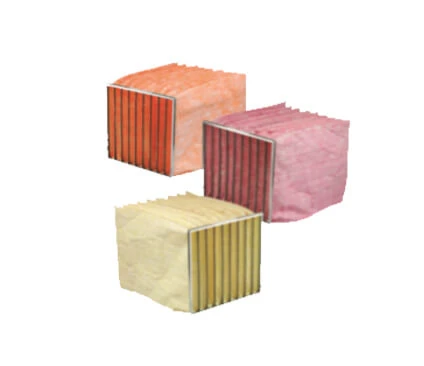

MIRADEEP BORSA FG
- Available in Class F6, F7, F8, F9
- MOC Galvanized Steel
- Standard depth 514mm and 920mm
- Unique fine fibre media to maintain efficiency.
- Longer Life Span and Higher Dust Holding Capacity
- Intercept is Available.
- UL Certified

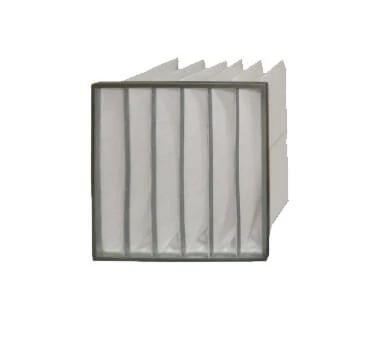

MIRADEEP BORSA G
- Available in Class G4
- MOC Galvanized Steel
- Standard Depth 305mm
- High Performance Synthetic Media Pocket Filter
- Unique Pocket Design enables the Filters to have high dust holding capacity and long service life characteristics.
- Intercept is Available.
- UL Certified.

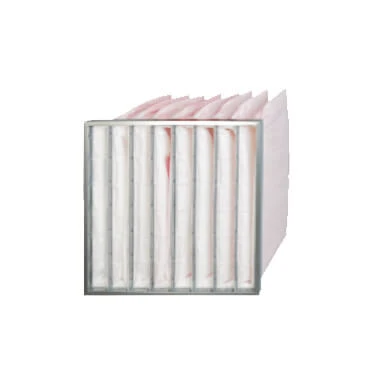

MIRADEEP BORSA
- Available in Class F6, F7, F8
- MOC Galvanized Steel
- Standard Depth 12”, 25”21”, 24”, 30”and 36”
- Synthetic Fibre Media offers High Product Strength.
- Longer Life Span and High Dust Holding Capacity.
- Intercept is available.
- UL Certified
MIRAPACK R
- Flange/ Box Type Filter
- Available in Class M6,F8,F9
- 150Pa @2000CFM
- MOC Galvanized Steel
- Standard Depth 150mm
- Environmental Friendly.
- Replace only with Media Packs
- MIRADEEP BORSA PS
- MIRACEL II HT
- MIRACEL V
- MIRACEL MB
- MIRACEL
- MIRACEL II MH
- MIRACEL II
- MIRACEL HT

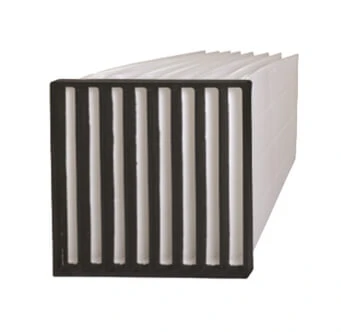

MIRADEEP BORSA PS
- Rigid Bag Type Medium High Performance Filter.
- Available in Class G4,M5,M6, F7
- 100% Synthetic Media.
- Molded Header does not corrode and can be incinerated
- Low Pressure Drop Design greatly reduces operating cost.
- High Dust Holding Capacity Provided extended life

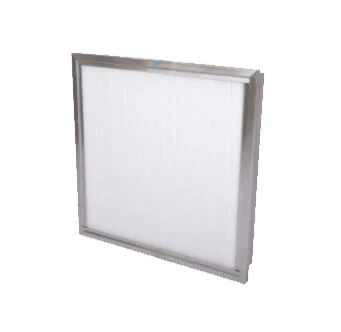

MIRACEL II HT
- High Air Flow Type Medium High Efficiency Filter.
- Available in Class F6,F7,F8
- Dual Density, Ultra Fine Fibre Glass.
- MOC Stainless Steel, Galvanized Steel.
- Temperature Limit Upto 250C
- UL Certified.

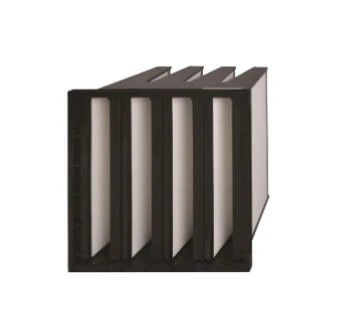

MIRACEL V
- High Air Flow Type Medium High Efficiency Filter
- Available in Class F6,F7,F8,F9
- Ultra – Fine Fibre Glass
- MOC ABS
- Standard Depth 292mm
- Longer Life Span due to Mini pleated Arranged in V shape.
- UL Certified

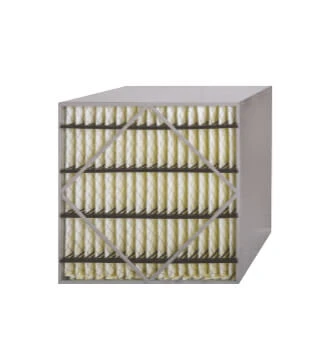

MIRACEL MB
- Standard Type Medium High Efficiency Filter
- Available in Class M5,F6,F7,F8
- MOC Galvanized Steel
- Standard Depth 292mm
- Melt blown Synthetic Media protected by Scrim on the Air -Leaving Side.
- UL Certified.

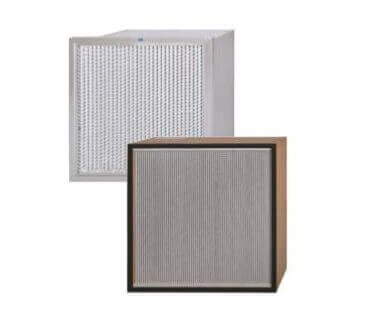

MIRACEL
- Standard Type Medium High Efficiency Filter
- Available in Class F6,F7,F8
- Dual Density Ultra-Fine Fibre Glass
- Corrugated Aluminium
- Available in Single Header, Double Header and Non Header.
- MOC Galvanized Steel, Anodized Aluminium, Stainless Steel, MDF, Plywood, Fire Retardant Plywood.
- Standard Depth 149mm and 292mm
- UL Certified.

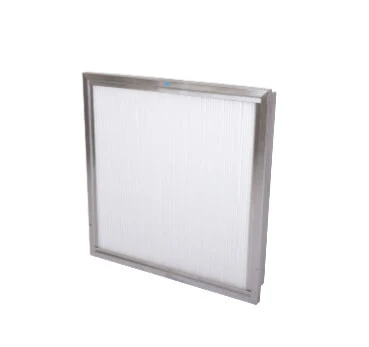

MIRACEL II MH
- Standard Type Medium High Efficiency Filter
- Available in Class F6,F7,F8
- Dual Density Ultra-Fine Fibre Glass
- Available in Single Header, Double Header and Non Header.
- MOC Aluminium, Galvanized Steel .
- Standard Depth 105mm
- UL Certified.

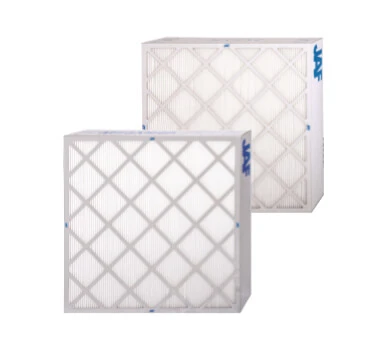

MIRACEL II
- Mini Pleat Type Medium High Efficiency Filter
- Available in Class F6,F7,F8
- Dual Density Ultra-Fine Fibre Glass
- MOC Beverage Board, Water Resistant Board
- Standard Depth 95mm
- UL Certified.

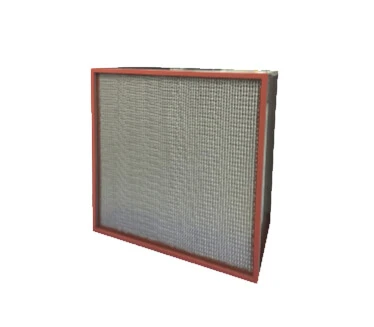

MIRACEL HT
- Mini Pleat Type Medium High Efficiency Filter
- Available in Class F6,F7,F8
- Corrugated Aluminium
- Available in Single Header, Double Header and Non Header.
- MOC Galvanized Steel, Anodized Aluminium, Stainless Steel, MDF.
- Standard Depth 149mm and 292mm
- Temperature limit upto 250 C
- UL Certified.
- LUNACEL TS
- LUNACEL STD
- LUNACEL HC
- LUNACEL HT
- LUNACEL V
- LUNACEL VBX
- TETRAKLEEN
- LUNACEL VL
- LUNAKLEEN

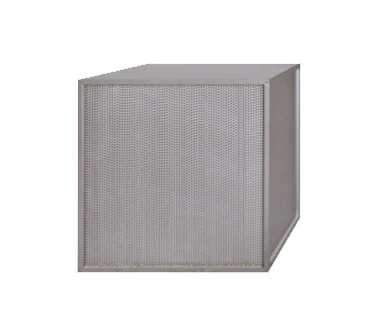

LUNACEL TS
- High Air Capacity Hepa Filter
- Available in Class H10,H11,H12,H13,H14
- Ultra fine fire retardant fibre glass.
- Corrugated Aluminium’
- Low Pressure Drop
- MOC Galvanized Steel Anodized Aluminium, Stainless Steel, MDF, Plywood.
- Standard Depth 149mm and 292mm
- Available in Dry Seal and Gel Seal to create leak free connection to the hardware.
- Energy Saving and Environment Friendly.
- UL Certified

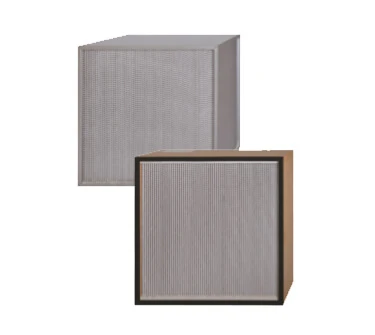

LUNACEL STD
- High Air Capacity Hepa Filter
- Ultra-fine fire retardant fibreglass
- Galvanized steel, anodized aluminium, stainless steel, MDF,Plywood with various separator construction options.
- Standard depth 292mm & 149mm
- Available for efficiency H13 and H14
- Dry seal and gel seal are available

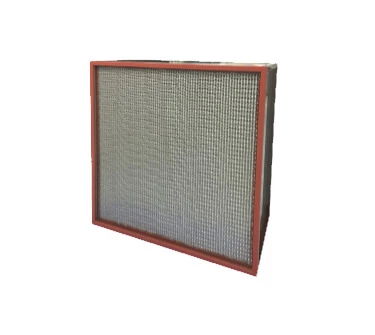

LUNACEL HC
- High Air Capacity Hepa Filter
- Ultra-fine fire retardant fibreglass
- Galvanized steel, anodized aluminium, stainless steel, MDF,Plywood with various separator construction options.
- Standard depth 292mm & 149mm
- Available for efficiency H13 and H14
- Dry seal and gel seal are available

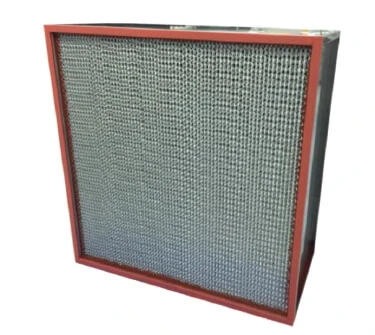

LUNACEL HT
- High Air Capacity Air Filter
- High temperature filter up to 2500C
- Ultra-fine fire retardant fibreglass
- Galvanized steel and stainless steel
- Standard depth 292mm & 149mm
- Available for efficiency H13 and H14

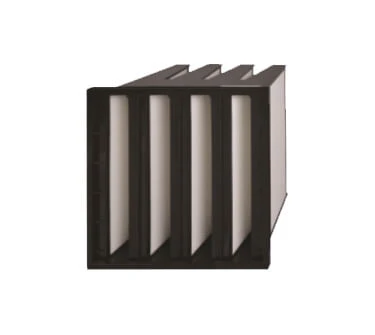

LUNACEL V
- High Air Capacity Mini Pleat HEPA Filter
- Designed for high air volume application
- More media areas with low pressure drop
- Longer lifespan
- Low energy consumption
- ABS Frame
- Available from H10 to H14

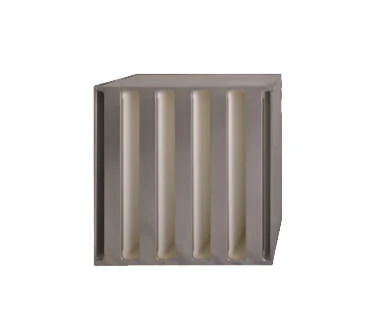

LUNACEL VBX
- High Air Capacity Mini Pleat HEPA Filter
- Designed for high air volume application
- The enlarged media area ensures lower average pressure drop and longer lifespan filter
- Low energy consumption
- Available for H13 – H14
- V-Bank panels in a single filter enclose allow up to 2500 CFM with minimal airflow resistance of 250Pa

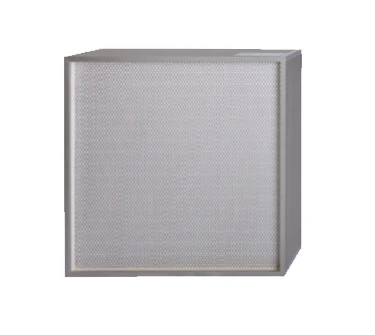

TETRAKLEEN
- PTFE-MINI Pleat Filter
- Ultra-high efficiency PTFE membrane
- Available for high efficiency H13, H14, U15,U16 and U17
- Ultra-low resistance to achieve optimum energy efficiency
- Negligible off-gassing properties (eg. boron, sodium, potassium, silicon)
- High durability media, minimize transportation cost, rough handling and installation damages
- High acid resistance to corrosive environment (acids, alkali, organic substances)

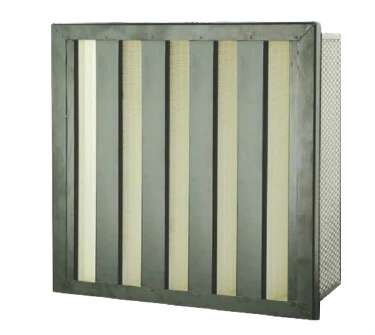

LUNACEL VL
- High Air Capacity Mini Pleat HEPA Filter.
- Design for high air volume applications
- The enlarged media area ensures lower average pressure drop and longer lifespan filter
- Low energy consumption
- Available for H13 – H14
- V-Bank panels in a single filter enclose allow up to 2500 CFM with minima airflow resistance of 1.0” w.g

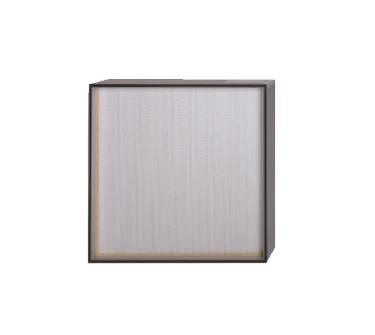

LUNAKLEEN
- Standard Type Mini Pleat HEPA/ULPA Filter
- Slim, light and compact type HEPA and ULPA filters
- Mini-pleat design
- Wide range of efficiency H13 to U17
- 100% HEPA filter scan test for guaranteed performance
- Optional for gel seal
